Explosion-Proof Industrial Dehumidifier
This explosion proof industrial dehumidifier is specifically designed for high-risk environments where flammable gases, vapors, or combustible dusts are present. Its primary applications include petrochemical plants, oil and gas refineries, pharmaceutical manufacturing, grain processing and storage facilities, paint spray booths, and chemical storage areas. By preventing the buildup of static electricity and containing potential ignition sources, it safely controls humidity to prevent condensation, protect sensitive equipment, and ensure product quality, all while mitigating the risk of fire or explosion.
Description
Explosion proof Industrial Dehumidifier
This explosion proof industrial dehumidifier is specifically designed for high-risk environments where flammable gases, vapors, or combustible dusts are present. Its primary applications include petrochemical plants, oil and gas refineries, pharmaceutical manufacturing, grain processing and storage facilities, paint spray booths, and chemical storage areas. It can safely controls humidity to prevent condensation, protect sensitive equipment, and ensure product quality, all while mitigating the risk of fire or explosion.
1. Specification
| Model | BGF-90LE |
| Dehumidifying capacity | 90L/day (30℃,80%RH) |
| Voltage / Cycle | 220V/50Hz/1PH |
| Max input power | 1800W |
| Max input current | 9.6A |
| Circulating Air | 800M3/h, |
| N/W (Kg) | 50Kg |
| Drainage method | Direct drainage |
| Operating temperature | 5℃-38℃ |
| Sensor | Humidity sensor |
| Explosion-proof Mark | Ex nC d ib mb II B T4 Gc |
| dehumidifier dimension (mm) | 540x410x905 |
| Explosion proof box dimension(mm) | 300x200x180 |
| Package | Wooden case |
| Production lead time | 18-25 days |

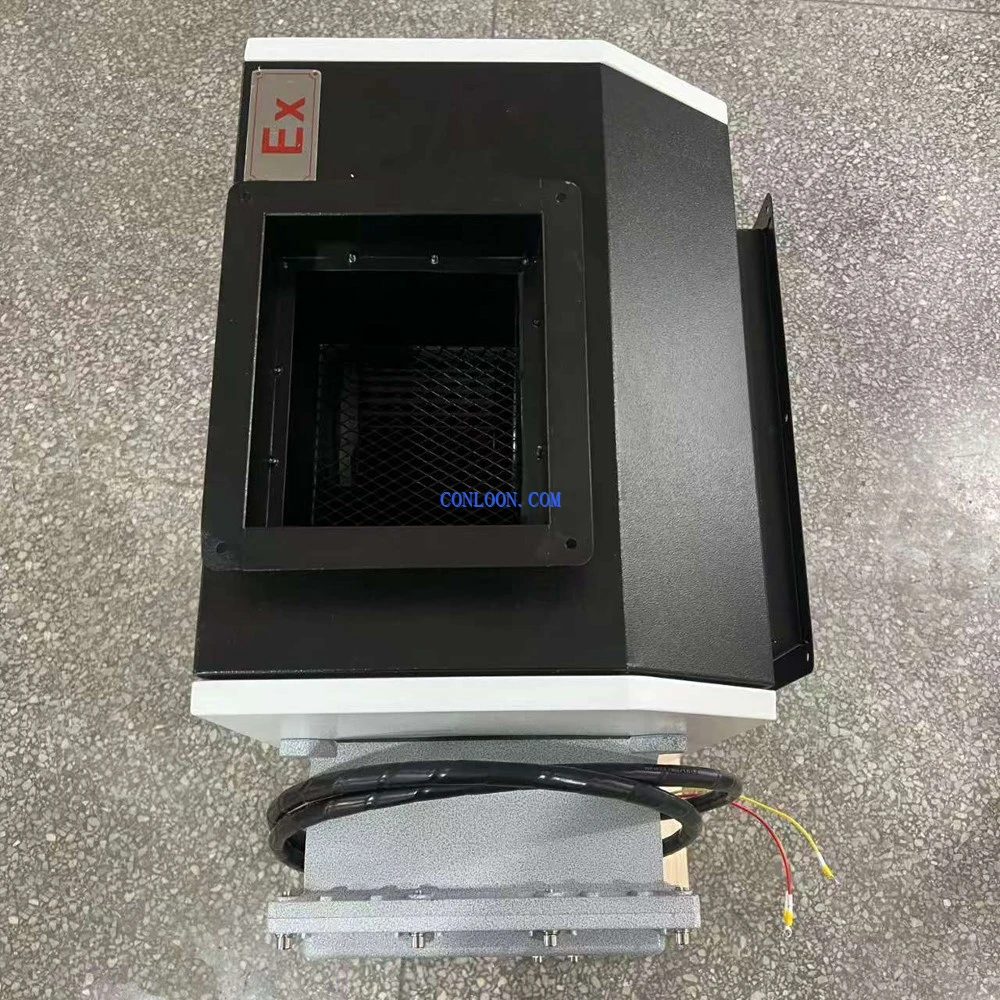

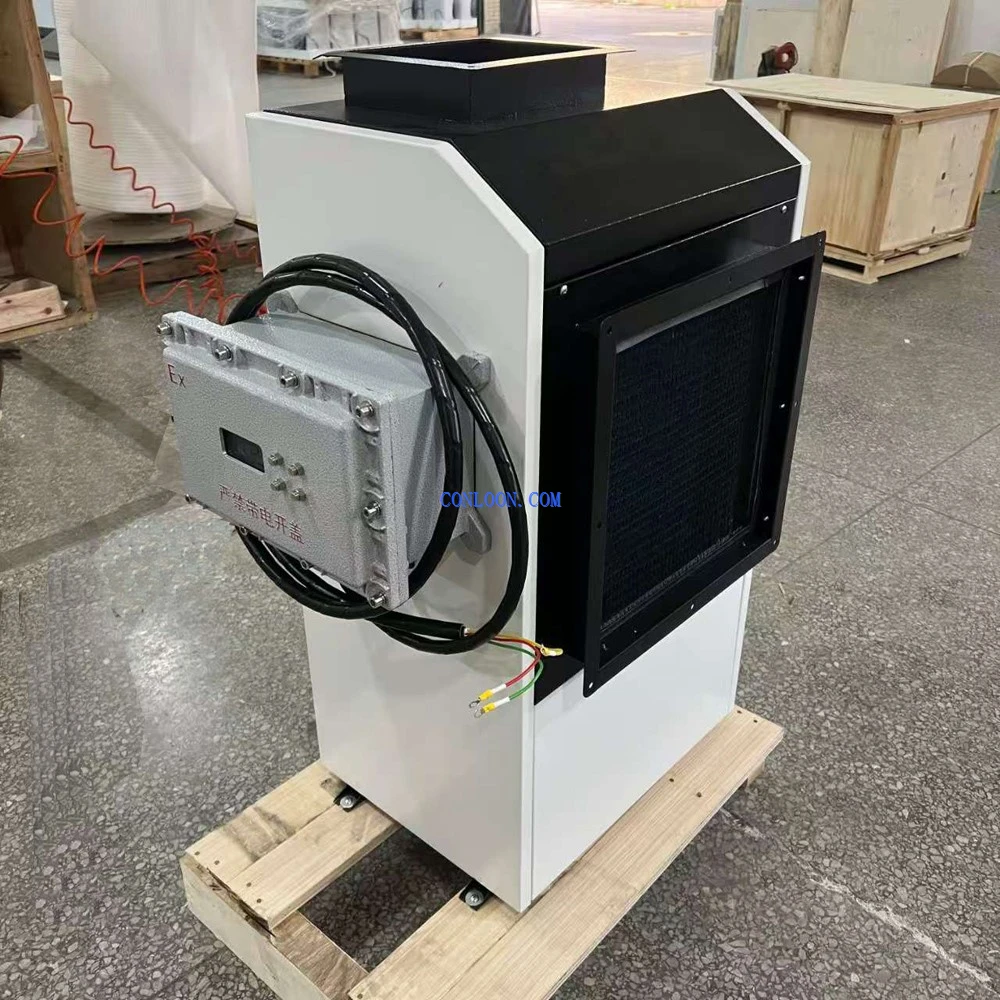

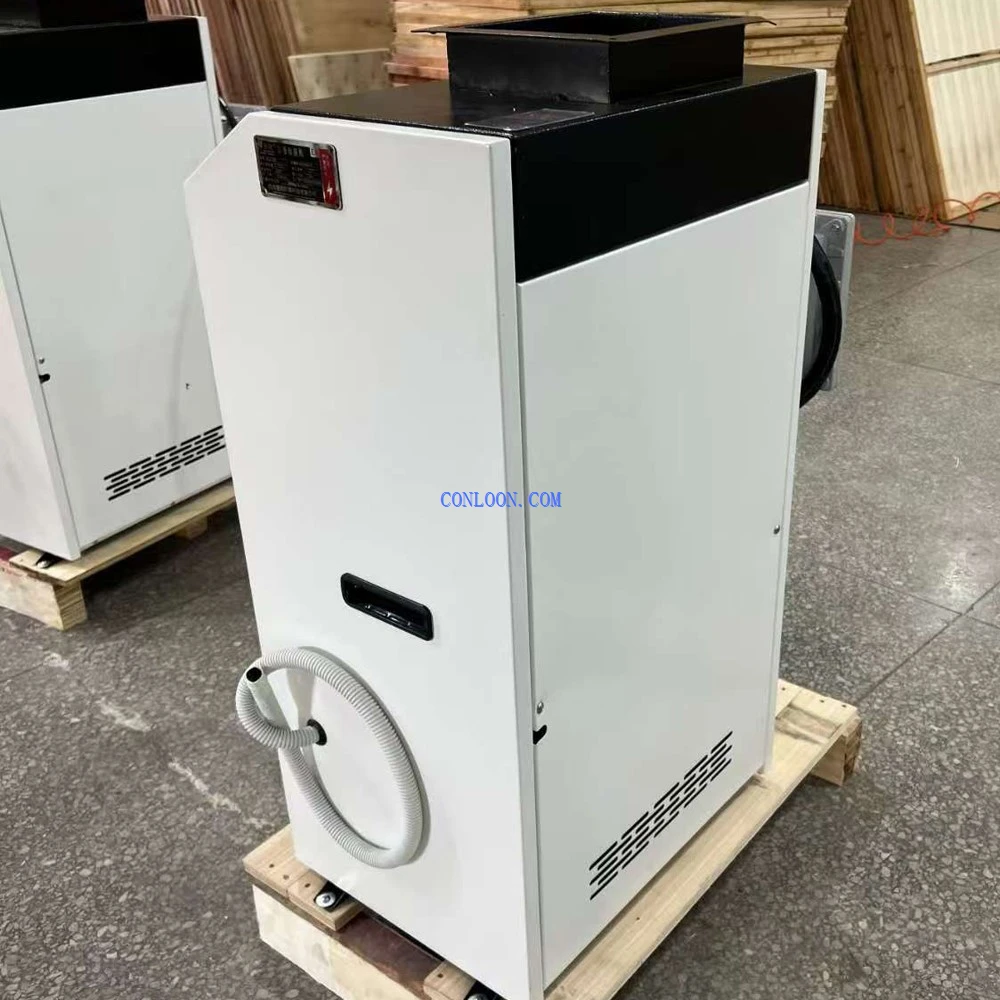

2. Photo
3. Q&A for explosion proof industrial dehumidifier：
When to Choose:
Select an explosion proof industrial dehumidifier for areas with flammable gases, vapors, or combustible dusts, such as chemical plants, refineries, grain processing, and paint spray booths, to eliminate ignition risks.
Key Considerations:
Ensure it has proper explosion-proof certification (e.g., ATEX, IECEx, CNAS Ex). Match the unit's protection level (Class/Division/Zone) to your specific hazard. Consider standard factors like capacity, airflow, and the required temperature range for optimal performance and safety.
Installation:
Installation must be performed by a qualified electrician in strict compliance with local hazardous area codes. This includes correct grounding, using certified conduits, and placing the unit in its designated zone as per its rating, with adequate clearance for airflow.
