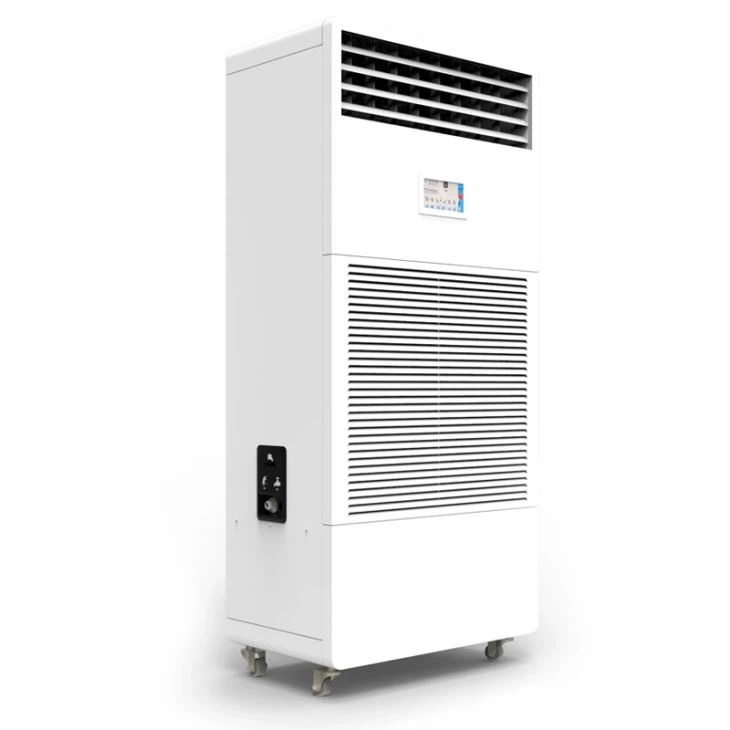

Hospital Wet Film Humidifier

HOSPTIAL WET FILM HUMIDIFIER

WET FILM HUMIDIFIER

USER MANUAL

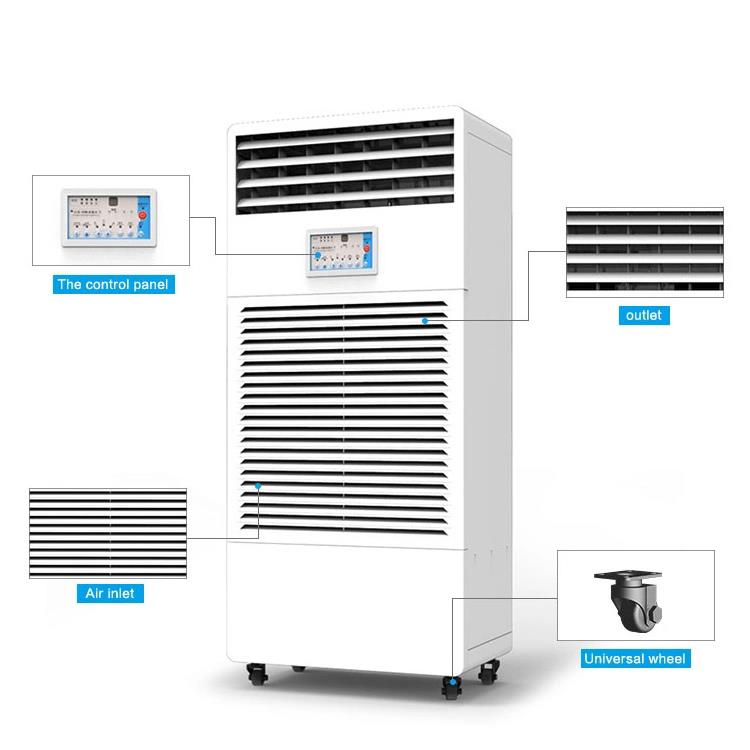

THE USE OF CONTROL PANEL

1. ON/OFF button

press on/off button once,the machine will turn on /turn off by cycle.

2. Wind button

Press this button to adjust the wind speed, button function: low wind - mid wind-high wind - low wind.....the output of wind speed is according to this order, and the indicator light on.

3. Mode button

this button is used to choose the work mode of the humidifier, the function is humidification- Ventilation, meanwhile, the indicator light on.

3.1 . humidity / lack of water protection

When the humidifier enters into the humidification mode, the pump starts to work. If the water level detective device detects that the tank is lack of water, the buzzer alarms,  15 minutes later, the humidifier stops work. The water light keeps on.

3.2. Humidity setting mode

A.There has 3 humidity value in this machine, 50%,65% and 80%,press the button, the setting value is 50% to 65% then to 80%,press once, the value changes.

B.When the humidity is less than setting humidity, power on the machine.

C.When the humidity is more than 2% of setting humidity value, power off the machine, 2 minutes later, when the humidity is less than the setting value, it will power on automatically .

D.When the humidity is more than setting value, the machine will power off automatically. The light flash.

3.3,ventilation mode

It has ventilation function, when humidity is reach the setting value, you can change the machine to ventilation mode via mode button.

3.4 drainage mode

(1) When entering into the drainage mode, there is no conversion in the 5s, then began to drain. Meanwhile, the machine stop working.

(2) Fan and pump stop working when the machine drain.

3.5 Pendulum wind mode

(1) press the Pendulum wind mode, swing wind mode will be on, press the button again, it will be off

(2) When it is under the Pendulum wind mode, humidity and water level is the same as general mode.

4. Display

(1) default running mode display, the humidity light on. Humidity value is 80%.when filling the water, F6 is on , when drain, F8 is on.

(2) Humidity value is 0-99%. Temperature display is -9-99 ℃.

(3) When the machine enters into the drainage mode, the drainage light on, press the button, the light off.

(4) When the machine enters the ventilation mode, the light on, press the button, the light off.

(5) When the machine enters the Pendulum wind mode, the light on, press the button, the light off.

5.Controller

for the first time, the controller is powered on,Parameters of the system reads the memory chip, setting the system power on/off state.

6.Troubleshooting

(1) Priority fault indication,E1 E2 priority

(2) Water failure, the corresponding data display shows E1, the alarm buzzer 12 times.the system stop working,when the water level back the the normal state, it will exit the fault state, comes back the to pre-fault state.

6.2 temperature sensor fault, when the value is out of the normal range, it is sensor fault,: environment temperature " off, display area has no number, alarm for 12 times,Display the corresponding data display area E2. The system works, when the sensor comes normal, exit the fault state. Comes back to the pre--fault state.

Humidity sensor fault, when the value is out of the normal range, it is sensor fault,: environment humidity" off, display area has no number, alarm for 12 times,Display the corresponding data display area E2. The system works, when the sensor comes normal, exit the fault state. Comes back to the pre--fault state.

7. Controller parameters

(1) Storage temperature; -20 ℃-80℃,working temperature:-10 oC-75℃

(2) RH:0-99%

(3) Voltage: 220V/50HZ

(4) humidity control accuracy: + or - 5%RH
