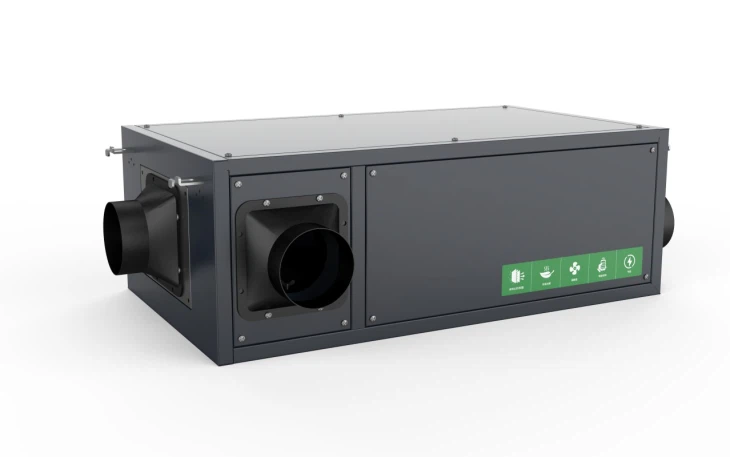

Fresh Air Ducted Dehumidifier For Theater
This fresh air ducted dehumidifier for theater can regulate the humidity level by cooling the coil, but this method is costly. The air is cooled below the dew point to allow the water vapor to condense, but then the air needs to be reheated to supply the occupied space at the appropriate temperature and corresponding humidity.
Description
Fresh Air Ducted Dehumidifier
Product Parameters
| Model No. | CLX-100 | CLX-250 |
| Power Supply | 220V/50Hz | 380V/50Hz |
| Power Consumption | 1050W | 4200W |
| Rated Current | 4.9A | 7.5A |
| Dehumidify Capacity(30℃,80%) | 100L/day | 250L/day |
| Drainage | Tube Continuously Drainage | Tube Continuously Drainage |
| Fan type | High/Low, stepless | High/Low, stepless |
| Air supply pressure | 100 Pa | 200 Pa |
| Control mode | Full touch LCD | Full touch LCD |
| Anti-electric /waterproof | type I / IPX3 | type I / IPX3 |
| Noise | <45DB | <55DB |
| Drainage pipe diameter | DN20 | DN20 |
| Filtration(Optional) | primary/medium/high | primary/medium/high |
| Purification(Optional) | uv/anion | uv/anion |
| Fresh air inlet | Φ150mm | 230*230mm |
| Return air inlet | Φ200mm | 500*400mm |
| Air supply outlet | Φ200mm | 356*313mm |
| Air Circulation | 1000~1200m3/h | 2500~2900m3/h |
| Working Temp. | 5~35℃ | |
| Auto Defrost | Yes | |
| Body Size(L*W*H) | 1030*639*375mm | 1370*820*640mm |
| Net Weight | 68kg | 182Kg |
| Remark: | ||
| 1.The CLX-100 model is suitable for L Section(50'x24'x10') | ||
| 2.The CLX-250 model is suitable for H Section(70'x24'x10)/Dry Fruit Section(70'x52'x10')/Milk Section(70'x24'x10') | ||
| 3.Delivery date: 25 workdays after prepaid | ||

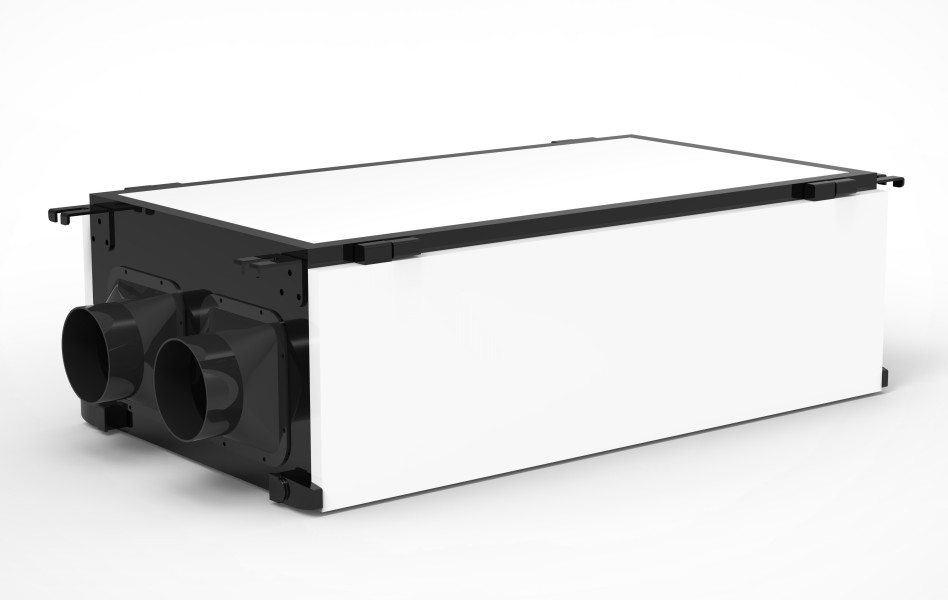

Fresh Air Ducted Dehumidifier for Theater
If the theater owner does not invest three times the system and operating costs, it will not be able to increase the amount of ventilation (according to the recommendations of the American Society of Heating, Refrigerating and Air-Conditioning Engineers No. 62 standard and the revised building law). In addition, the theater's main atrium is surrounded by a variety of types of rooms, including the lobby, projection room and washroom, each with its own ventilation and temperature requirements. Appropriate temperature and humidity control between these areas requires special attention. Not only temperature, humidity also has an important impact on human comfort.
This fresh air ducted dehumidifier for theater can regulate the humidity level by cooling the coil, but this method is costly. The air is cooled below the dew point to allow the water vapor to condense, but then the air needs to be reheated to supply the occupied space at the appropriate temperature and corresponding humidity.
In fact, the occupancy of the cinema is also intermittent. The resulting operating costs are expensive because the ventilation and heating requirements can vary greatly, causing the system to exceed supply for most of the time. Independent control of humidity eliminates the cost of unnecessary adjustments to temperature.
This fresh air ducted dehumidifier uses cooling coils to adjust the humidity level, but this approach creates problems. Excessive cooling of the air can eliminate moisture, but it can make people feel cold and uncomfortable in the theater. Intermittent use of cinemas results in different ventilation requirements during off-peak heat loads and peak periods.
Conloon dehumidification system reduces space humidity and provides proper ventilation while reducing energy costs and increasing customer comfort.
Product Display
Installation of Ceiling Mounted Dehumidifier
Installation Instruction
